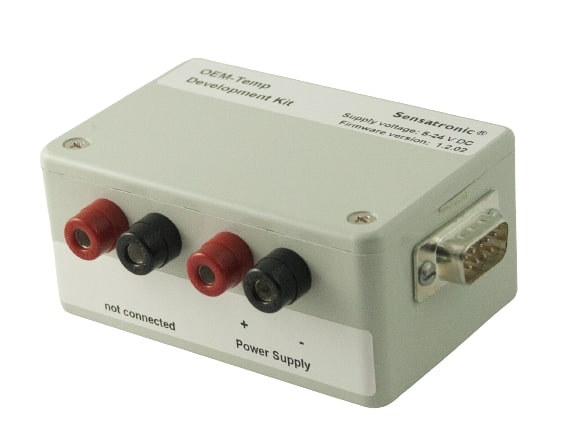

The OEM-Temp module has been designed for measuring the body temperature of patients using temperature probes compatible with the 400 series characteristics.

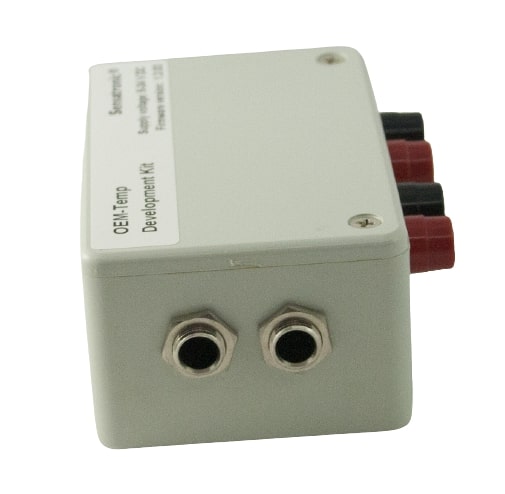

The module can work with two probes simultaneously and is characterised by its compact design and low power consumption. Therefore it is best suited even for battery-powered applications.
The module is highly accurate with interchangeable temperature probes and does not need to be recalibrated.
The measured data can be interchanged with the host system via an RS232 interface.
REF: 015-00012
Contact us for further information
|

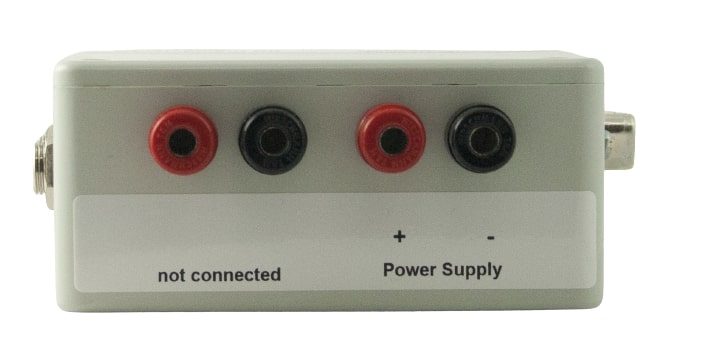

Supply Voltage
|
5 - 24V DC +/-%; 3.3V DC version on request |
|
Current Consumption
|
< 10 mA
|
|
Measuring principle
|
Constant current mode
|
|
Interface
|

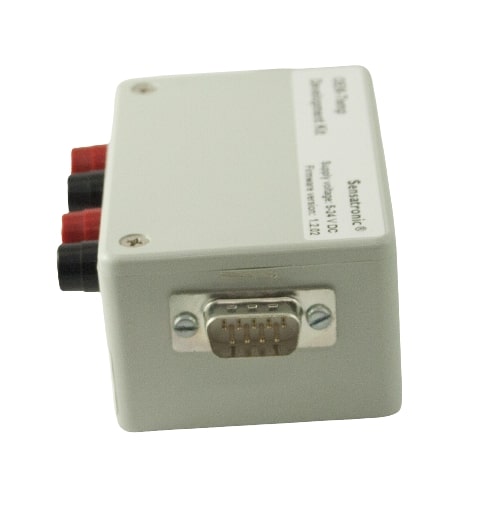

RS232 with level converter (EIA/TIA-232 compatible);
TTL level version on request
Data rate : 9600 Baud
Data bit : 8
Stop bit: 1
Parity: None
Handshake: none
|
|
Digital I/O (optional)
|
2 x 3.3V compatible, optional for customer specific use
|
|
AD conversion
|
Resolution: 14 bit
Conversion time: approximately 100 ms (both channels)
Maximum data rate: 10 samples per second
|
